Product |
|
|
|
|
Product information |
|
| Basic information
： |
| Name: |

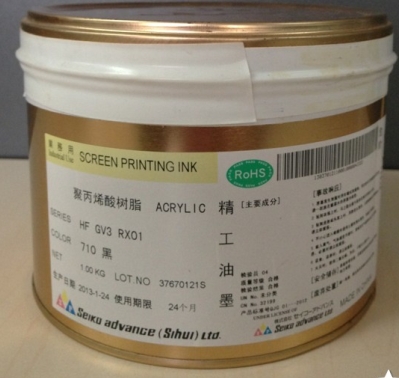

HF GV3 RX01 Series |
| Model: |
HF GV3 RX01 |
| Feature: |
HF GV3 RX01 Series is two-part reaction ink developed for Tempered Glass. This series is an environmentally-friendly product, the percentage of Chlorine and Bromine is less than 900ppm, and the total Halogen is below 1500ppm. In additional, HF GV3 RX01 series conduct scarcely. |
|
|
| Description： |
Ink type: Two(2)-part reaction acrylic ink.
Feature: Gloss finish, excellent in leveling.
HF GV3 RX01 Series can adhere to glass at low temperature and keep up with the physicality test of
every kind.
Diluents : Standard solvent T-980
Wash-up solvent: T-31
Screen mesh: T250~T420/inch fabric are recommended .
Mixing ratio: HF GV3 RX01 710 black and other colors: A hardener :Care183=100:15:2
HF GV3 RX01 120: A hardener: Care183=100:10:2
Drying: Baking: 120℃x30min. is recommended
Note:
1. Drying more than 40min at 120℃ may help to improve alcohol resistance.
2. Please follow the ratio of additive and adjust viscosity with diluents. Once ink is mixed HF GV3 RX01
and additives, the ink will get thicker about 3 hours at room temperature, so, please diluent.
3. 1% addition of Care111 to the ink may help to improve the foaming printing problems.
4. When HF GV3 RX01 Series lose its performance because of the influence of environment and time,
please add 1% of Care183.
5. Pot-life is approximately 7 hours. So, please do not use after 7 hours
6. Please check the performance under long storage.
HF GV3 RX01-Series ink film test result
Ink : HF GV3 RX01 710 Black
Substrate: Tempered glass
Screen mesh: T-420/inch
Squeegee: Urethane medium-hard
Printing: Hand printing
Mixing ratio: HF GV3 RX01 710: A Hardener: Care183=100:15:2
Diluents: T-980 10%
Drying condition: 120℃x30min.
|
|
|
|
|
