Product |
|
|
|
|
Product information |
|
| Basic information
： |
| Name: |

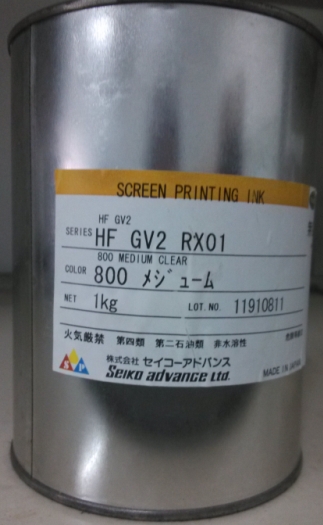

HF GV2 Series |
| Model: |
HF GV2 |
| Feature: |
HF GV2 Series is two-part reaction ink developed for Tempered Glass. This series is an environmentally-friendly product, the percentage of Chlorine and Bromine is less than 900ppm, and the total Halogen is below 1500ppm. In additional, HF GV2 series conduct scarcely. |
|
|
| Description： |
Ink type Two(2)-part reaction acrylic ink.
Feature : Gloss finish, High printability and excellent in leveling.
Diluents : Standard solvent T-980
Wash-up : T-31
Screen mesh : T250~T420/inch fabric are recommended .
Mixing ratio : HF GV2: Care182=100:2
Drying : Baking: 150℃x30min. is recommended
Note:
Please follow the ratio of additive and adjust viscosity with diluents.
1% addition of Care111 to the ink may help to improve the foaming printing problems.
When HF GV2 Series lose its performance because of the influence of environment and time,
please add 1% of Care182.
Pot-life is approximately 7 hours. So, please do not use after 7 hours
Please check the performance under long storage.
HF GV2-Series ink film test result
Ink : HF GV2 710 Black
Substrate : Tempered glass(Coning, Hoya)
Screen mesh: T-420/inch
Squeegee : Urethane medium-hard
Printing : Hand printing
Mixing ratio : HF GV2 710: Care182=100:2
Diluents : T-980 10%
Drying condition: 150℃x30min.
|
|
|
|
|
